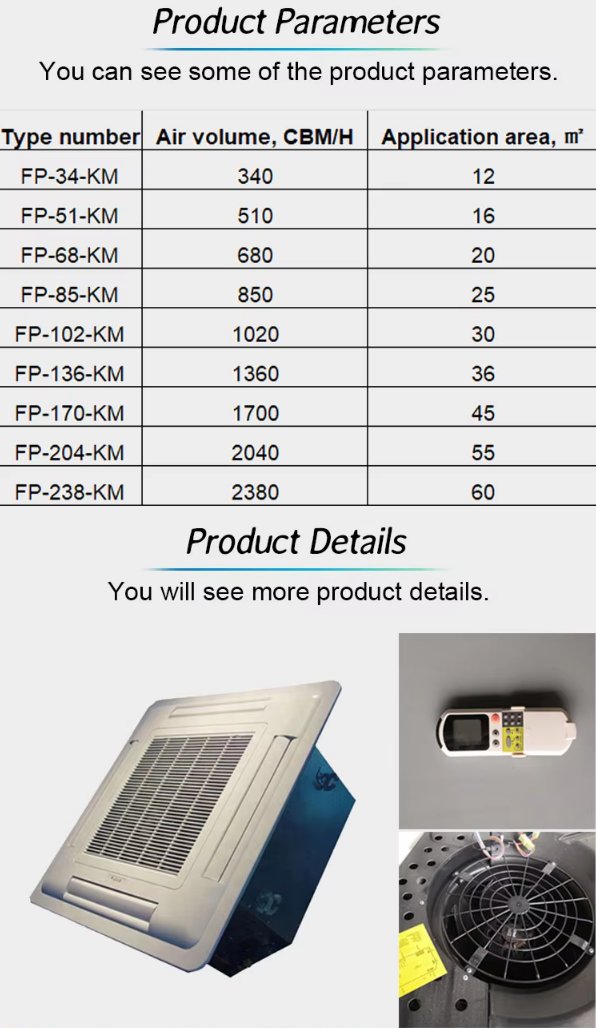

1.340 m³/h-2380m³/h air Volume 2. ultra thin body, thinckness is 290mm 3. remote controller, drain pump and wire controller optional 4. 4 way & 8 way optional 5. DC motor fan coil and AC motor fan coil optional 6. low noise and easy installtion 7.2 pipe or 4 pipe optional
| Model parameter | FP-34KM-PI | FP-51KM-PI | FP-68KM-PI | FP-85KM-PI | FP-102KM-PI | FP-136KM-PI | FP-170KM-PI | FP-204KM-PI | FP-238KM-PI | ||
| FP-34KM-ZI | FP-51KM-ZI | FP-68KM-ZI | FP-85KM-ZI | FP-102KM-ZI | FP-136KM-ZI | FP-170KM-ZI | FP-204KM-ZI | FP-238KM-ZI | |||
| Rated air flow | high | m³/h | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
| middle | m³/h | 280 | 380 | 520 | 660 | 760 | 1020 | 1270 | 1530 | 1780 | |
| low | m³/h | 180 | 280 | 340 | 430 | 510 | 680 | 850 | 1020 | 1190 | |
| Rated cooling capacit y | high | W | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | 12600 |
| middle | W | 1500 | 2300 | 3060 | 3840 | 4600 | 6120 | 7660 | 9180 | 10720 | |
| low | W | 1350 | 1760 | 2350 | 2930 | 3510 | 4670 | 5850 | 7020 | 8190 | |
| Rated heating capacit y | high | W | 2700 | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 | 18900 |
| middle | W | 2400 | 3450 | 4600 | 5750 | 6890 | 9170 | 11470 | 13770 | 16050 | |
| low | W | 2150 | 2460 | 3520 | 4290 | 5260 | 7020 | 8780 | 10550 | 12270 | |
| noise | dB(A ) | 37/36/34 | 39/37/35 | 41/39/37 | 43/41/39 | 45/43/39 | 46/44/40 | 48/46/42 | 50/47/45 | 52/49/46 | |
| power supply | 220-240V/1P/50Hz | ||||||||||
| Input power | W | 37 | 52 | 62 | 76 | 85 | 116 | 130 | 135 | 170 | |
| Working current | A | 0.17 | 0.24 | 0.28 | 0.35 | 0.39 | 0.53 | 0.59 | 0.61 | 0.77 | |
| Coil Type | Hydrophilic aluminum fin to wear copper tube | ||||||||||
| Water flow | kg/h | 360 | 530 | 630 | 780 | 950 | 1260 | 1580 | 1890 | 2210 | |
| Water resistance | kPa | 15 | 20 | 25 | 30 | 35 | 40 | 40 | 43 | 50 | |
| Working pressure | Mpa | ≤1.6 | |||||||||
| Number of motors | 1 | ||||||||||
| Fan type | Low noise centrifugal fan | ||||||||||
| Inlet and outlet pipes | ZG3/4”(internal thread) | ||||||||||
| Condensate pipe | mm | φ26 | |||||||||
| Unit size L*W*H | Drained by pump | mm | 575*575*390 | 741*741*400 | 830*830*420 | ||||||
| Drained by Nature | mm | 575*575*290 | 741*741*290 | 830*830*290 | |||||||
| Unit net weight | Drained by pump | kg | 24 | 25 | 26 | 35 | 38 | 39 | 45 | 46 | 47 |
| Drained by Nature | kg | 20 | 21 | 22 | 32 | 33 | 34 | 40 | 41 | 42 | |
| panel | L*W*H | mm | 650*650*35 | 850*850*38 | 950*950*40 | ||||||
| Weight | kg | 2.5 | 4 | 7 | |||||||
| Lifting installat ion size | L*W | mm | 625*275 | 790*340 | 880*380 | ||||||
