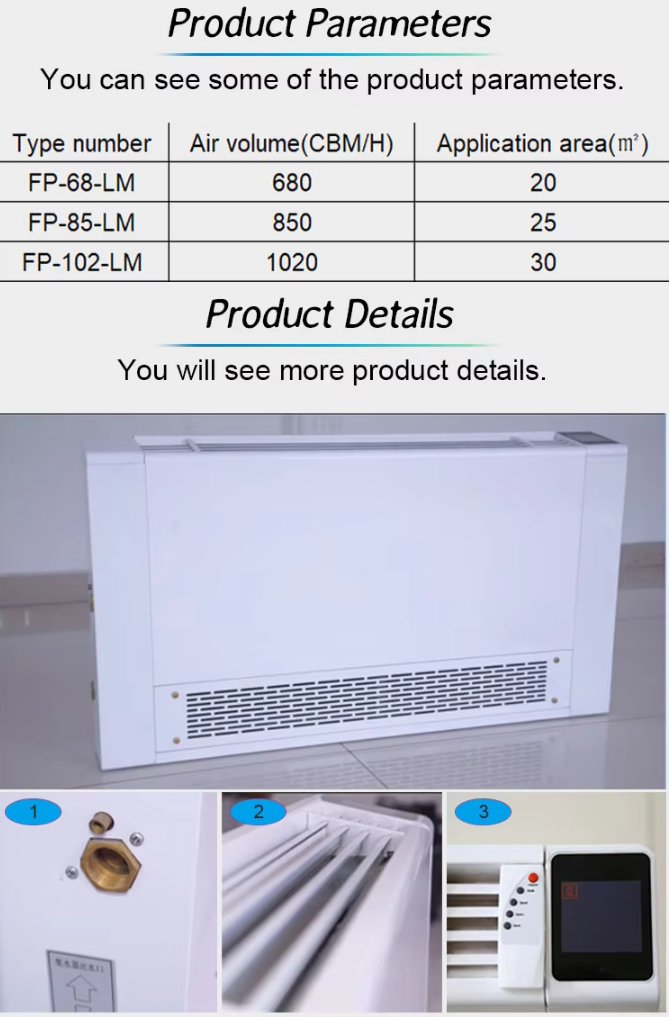

1. The vertical fan coil is suitable for hotel or home decoration. 2. The fan coil has a beautiful design and can be well matched with the overall decoration style. 3. The evaporator of the fan coil uses gold heat-dissipating fins for better heat exchange performance and corrosion resistance. 4. The machine adopts the design of left and right double connecting water pipes, which is suitable for most installation environments. 5.This fan coil can be hung in the lower part of the wall.
| Model | Flow 680 | Flow 850 | Flow 1020 | ||
| Air flow (m3/h) | High speed | 680 | 850 | 1020 | |
| Medium speed | 520 | 600 | 780 | ||
| Low speed | 400 | 510 | 600 | ||
| Cooling capacity | HIGH | W | 3290 | 4020 | 4650 |
| Medium | w | 2650 | 3200 | 3900 | |
| Low | w | 2060 | 2410 | 3650 | |
| Heating capacity | HIGH | W | 4530 | 6040 | 6840 |
| Medium | w | 3870 | 4510 | 5160 | |
| Low | w | 3100 | 3610 | 4130 | |
| Power supply | AC220V/50Hz | ||||
| Power input | 13W | 18W | 25W | ||
| Waterflow volume | m3/h | 0.95 | 1 | 1.1 | |
| Water tube connection (inlet) | INCH | 3/4’’ | |||
| Water tube connection (outlet) | INCH | 3/4’’ | |||
| Maximum working Pressure | MPA | 16 | 16 | 16 | |
| Condensation pipe size(diameter ) | Mm | 8 diametre *0.22 wall thickness | 8*0.22 | 8*0.22 | |
| Noise dB(A) | HIGH | 40 | 41 | 45 | |
| Medium | 38 | 40 | 43 | ||
| LOW | 36 | 38 | 42 | ||
| Cooling Area | 20 | 25 | 30 | ||
| Heating Area | 25 | 30 | 35 | ||
| Outside dimension (L*W*H) | 950*130*570 | 1050*130*570 | 1250*130*570 | ||
