1. Blue efficient radiator. 2. The body is made of 0.7mm thick sheet metal, which reduces the vibration noise caused by the fan. 3. The entire product can be customized within a reasonable range.

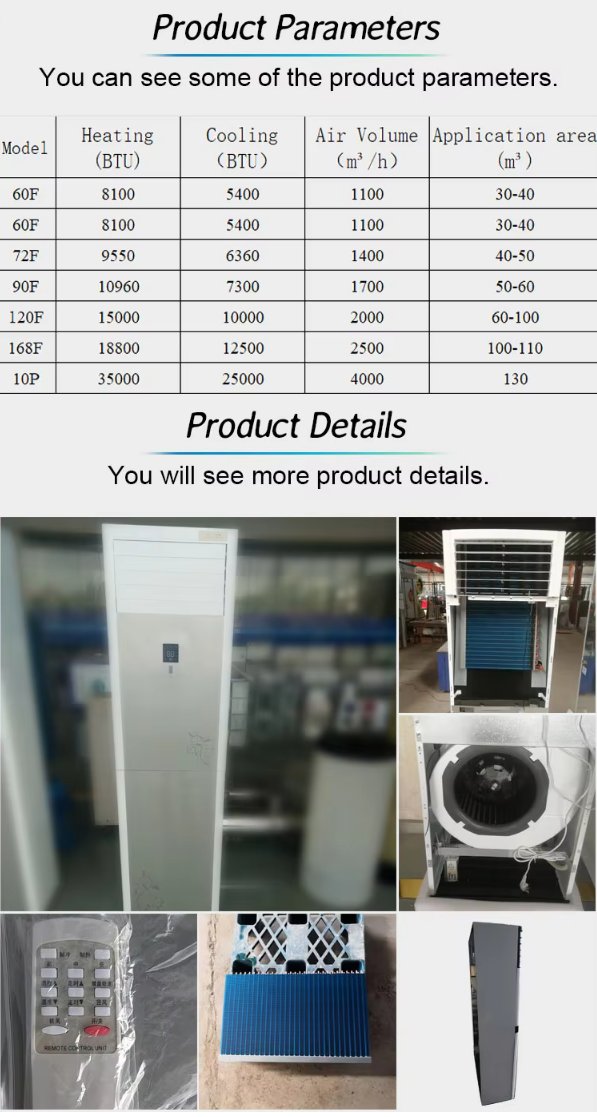

| Model | 60F | 72F | 90F | 120F | 168F | 10P | |
| Air volume | H | 1100 | 1400 | 1700 | 2000 | 2500 | 4000 |
| (m³/h) | M | 900 | 1200 | 1500 | 1740 | 2100 | |
| L | 600 | 900 | 1200 | 1420 | 1700 | ||
| Cooling capacity | H | 5400 | 6360 | 7300 | 10000 | 12500 | 25000 |
| M | 5000 | 5500 | 6280 | 9000 | 11250 | ||
| L | 4000 | 4300 | 5160 | 7000 | 8750 | ||
| Heating capacity | H | 8100 | 9550 | 10960 | 15000 | 18800 | 35000 |
| M | 7300 | 8260 | 9420 | 12000 | 15500 | ||
| L | 6100 | 6450 | 7740 | 10000 | 13000 | ||
| Noise db (A) | 47 | 50 | 56 | 56 | 56 | 55 | |
| T of chilled water | 7℃ to 12℃ | ||||||
| T of hot water | 60℃ to 50℃ | ||||||
| Power source | 220V /50Hz, 110V/60Hz, AC | ||||||
| Water pipe | ZG 3/4“ | ||||||
| Dimension(mm) | 500×285×1750 | 600×380×1900 | 600×380×1900 | 600×380×1900 | 600×380×1900 | 1180×400×1830 | |
| Adopted area(m³) | 30-40 | 40-50 | 50-60 | 60-70 | 100-110 | 130 | |
| Carton box(mm) | 530×320×1770 | 620×410×1920 | 620×410×1920 | 620×410×1920 | 620×410×1920 | 1200×450×1860 | |
| Input power(W) | 100 | 150 | |||||
